Win 10 Operation System PCB Separation, Semi-automatic PCB Router
PCB Separation Machine Features:

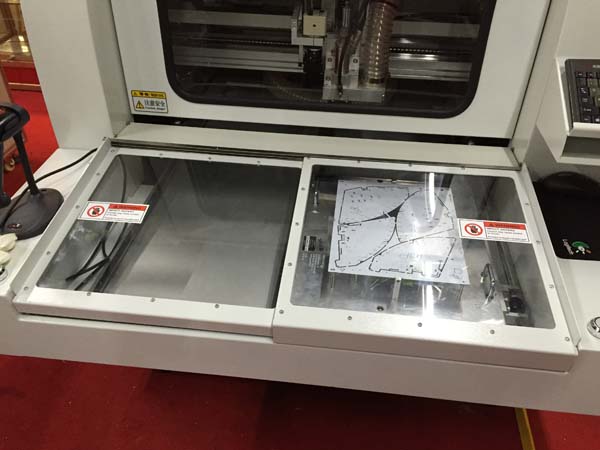

1. Two-slide working tables for high volume production.
2. It has lower stress to protect PCBA to ensure smooth cutting edge.

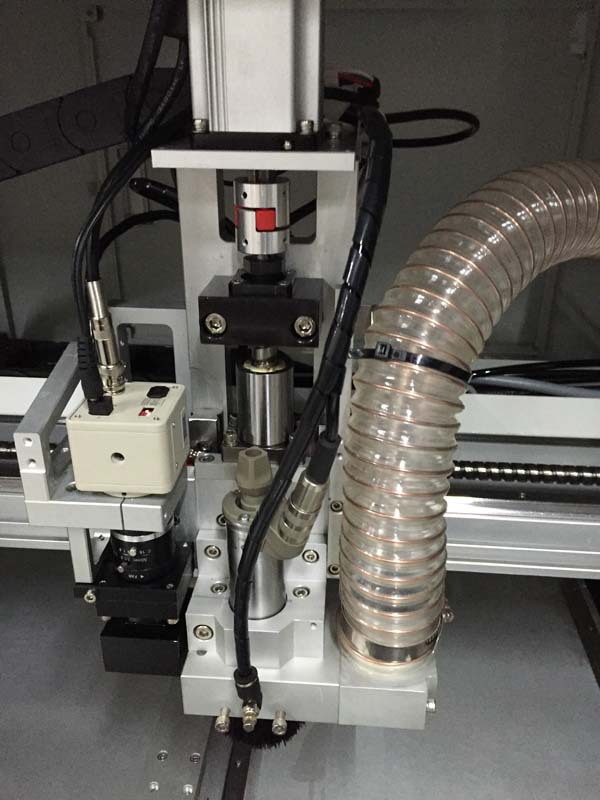

3. Panasonic motor and SycoTec spindle is used for noise free and precise cutting.
4. Optional top and bottom vacuum cleaning sytem is available for different clients' requirements.

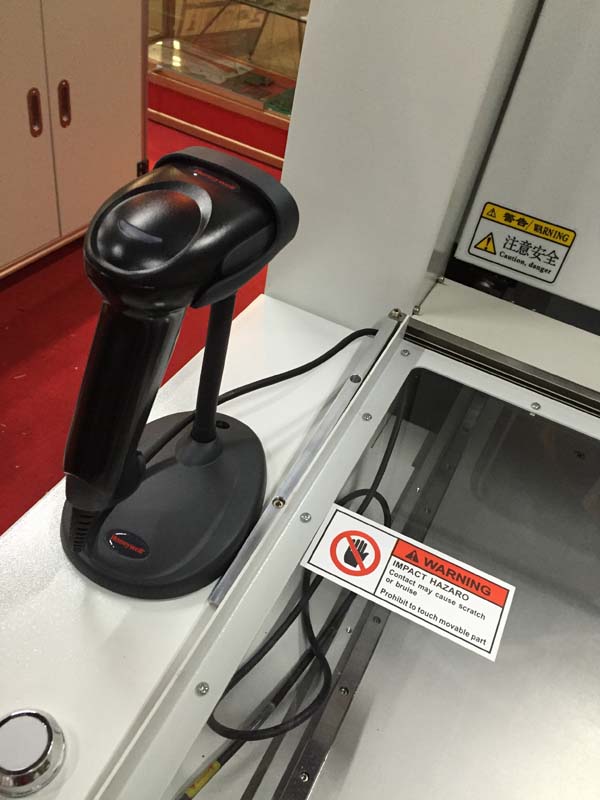

5. Germany camera and CCD system for automatic alignment.
6. Win 10 operation system and different operation permission makes the system easy operate.
7. Optional barcode scanner and track system is available.
PCB Separation Machine Specifications:
| Overall | |
| Dimensions(W*D*H) | 1250mm*1650mm*1450mm |
| Weight | 750KG |
| Height offset | 60~110mm |
| Manipulator | |
| Motor type | JiaBao series |
| Positioning repeatability | 0.001mm |
| Axis working area(max) | 650mm*560mm*50mm |
| Work station | |
| PCB fixation | standard,specialization |
| PCB loading/unloading | manual |
| PCB size (max) | 320*320mm |
| PCB thick (max) | 5mm |
| Fixturing | |
| Rigidity fixturing | Customized make fixture |
| Fixturing fixation | machinery |
| Spindle Motor | |
| Power | 150W |
| Spindle | 60000rpm/min |
| Protect | self/wind cooling |
| Change cutter | Specialization |
| Routing capability | |
| Cutting speed(max.) | 80mm/s |
| Driving speed(max.) | 2500mm/s |
| Precision of cutting | 0.01mm |
| Vacuum System | |
| Vacuum power | 3.5KW AC 380V |
| Vacuum | plumb |
| Utilities | |
| Power | 2.0KW AC380V |
| Air supply | 4-6KG/cm2 |
| Programming | |
| Program edit | Inline |
| Function edit | Line,arc,circula,U-curve |
| Program storage | HDD |
| Vision system | SONE colour CCD |
| milling cutter offset | AUTO |
| Vacuum setup | AUTO |
| Operation Monitors | |
| Iindicator | Iindicator Machine state |
| tool check | Automatic detection tool life, the use of time testing |
| Motor protect | Have overheating, overload, low voltage protection function |
| motor over loading check | Have Overload, the line is normal, low voltage protection function |
| Tool usable time | Automatic detection tool life, |
| Data statistic | Separate board model, separating count, diverse counting methods |
| Error record | Software automatically records all alarms memory of machines |
| III. Accuracy | |
| Axis precision | 0.001mm |
| Cutting precision | 0.1mm |
| IV. Safety | |
| Working area protect | With four sealed protection |
| Door sensor | Front and rear safety door micro-switch sensor (optional) |
| Exigency stop button | |
PCB Separation Machine Application:
It is widely used in electronic industries manufacturing, such as mobile phone, automotive electronics, household electric appliances, mobile phone, LED lighting, medical industry, etc.
