330mm Linear Cutting Blades PCB Depanel Machine Without Cutting Stress

Brand Name : Winsmart

Model Number : SMTPD2

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : USD1-10000/set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 sets per month

Delivery Time : 2-5 days

Packaging Details : Plywood case

PCB Material : FR1, FR4, CEM1, CEM3, MCPCB

PCB Thickness : 0.4-5mm

Blade Type : Linear Blade(Customizeable)

Advantage : Low Cutting Stress

PCB Type : V-scoring Boards

Name : PCB Depanel

Contact Now

330mm Linear Cutting Blades PCB Depanel Without Cutting Stress





PCB Depanel Description:

It is air drien with 2 linear blades design, working similar to a scissor to low the cutting stress, so that the components won't be damaged during depaneling. It is available for all v-scoring panels depaneling.



PCB Depanel Features:

1. The machine is driven by air, it has lowest stress without bending and tension to protect PCB from damage during cutting.

2. Footpedal control, adjustable cutting speed.

3. Max 2mm blade clearance to avoid accident, operator is unable to insert fingers into it.

4. Blades are customizeable for panels with close components mounted.

5. Blades can be re-sharpened for 2-3 times.

6. Cylinder driven to make workshop clean and environmental.



PCB Depanel Specification:

Model SMTPD2　
Machine Dimension 720x300x440mm / 520x300x440mm / 500x300x440mm
Max Cutting Length 330mm / 200mm / 130mm
PCB Material FR4, MCPCB, CEM, Copper Boards
Air Pressure 0.4-0.7MPa
PCB Thickness 0.3-3.5mm
Power 110/220V
Machine Weight 130kgs / 100kgs / 80kgs

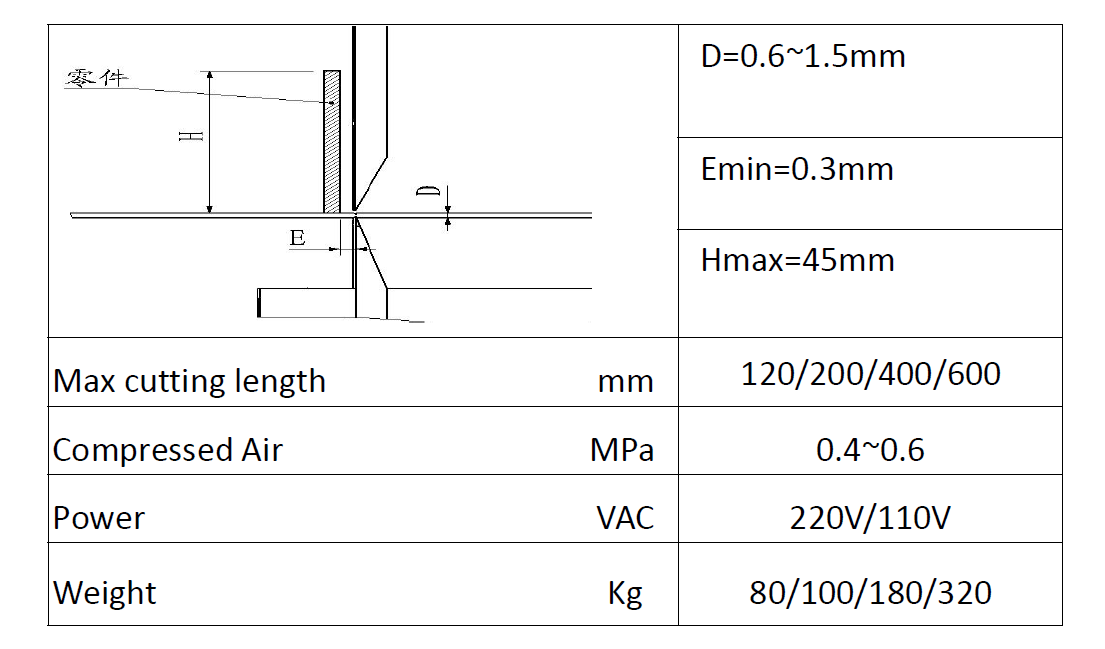

PCB Depanel Parameters:

330mm Linear Cutting Blades PCB Depanel Machine Without Cutting Stress



PCB Depanel Maintaining:

Clean the machine after your work is done, spray ant-rust oil onto blades before longtime storing.
